Support stands for the commercial vehicle workshop
Fuchs Hydraulik manufactures support stands for commercial vehicle workshops. Our product range includes single and double safety stands. Both versions allow for height adjustment of 650 mm and are designed for a load of five, ten or fourteen tonnes depending on the model. As a German company with headquarters and production in Rhineland-Palatinate, with our support stands we stand for quality “Made in Germany”.
Quality and Application

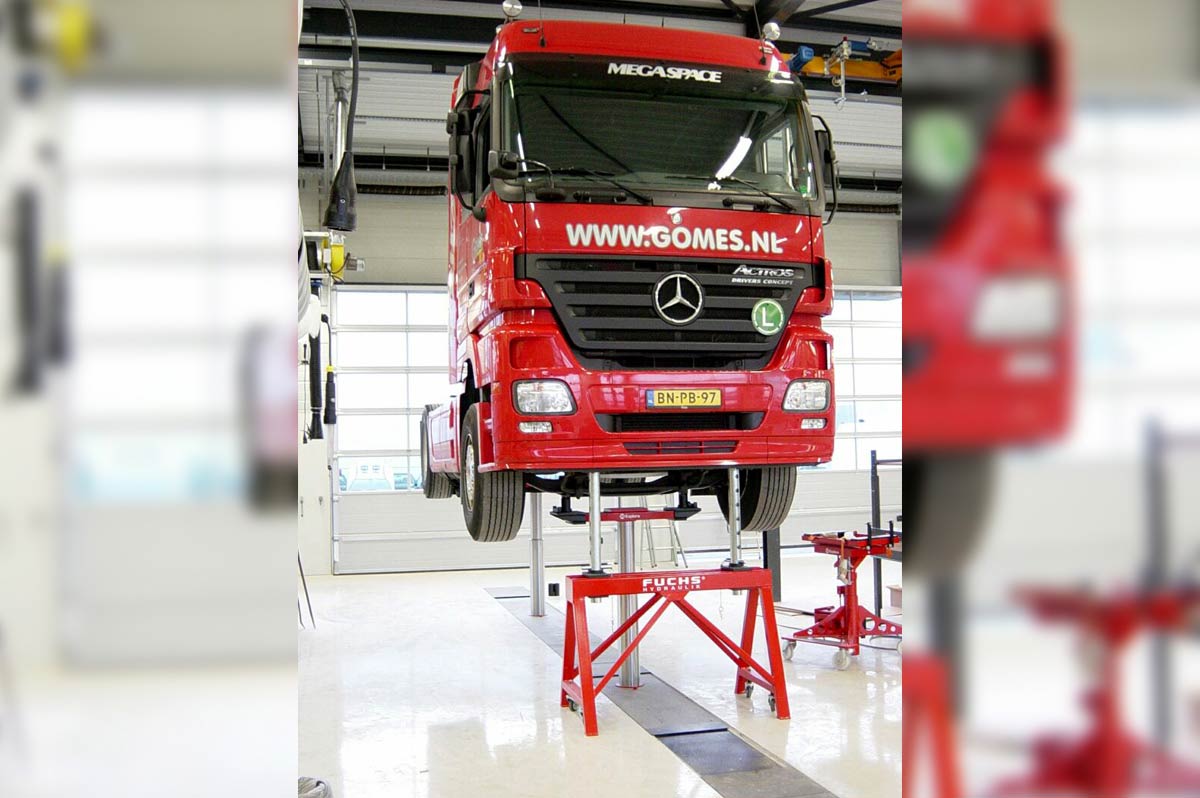

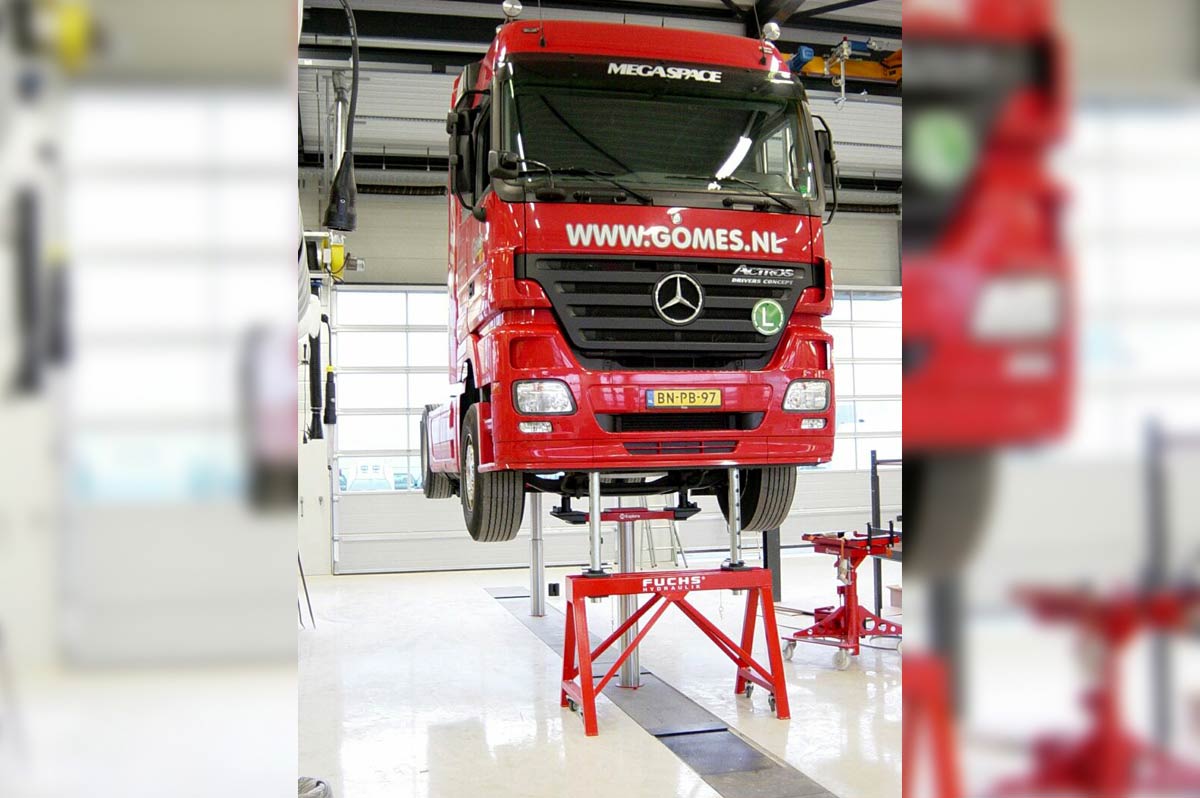

Fuchs Hydraulik support stands are GS safety-testd, CE certified and are convincing with their simple and very robust construction. The stands are designed for supporting raised vehicles and for lighter axle or spring removal on hoists. The hoist channel can be bridged with our double safety stand.
Maneuvering and adjusting

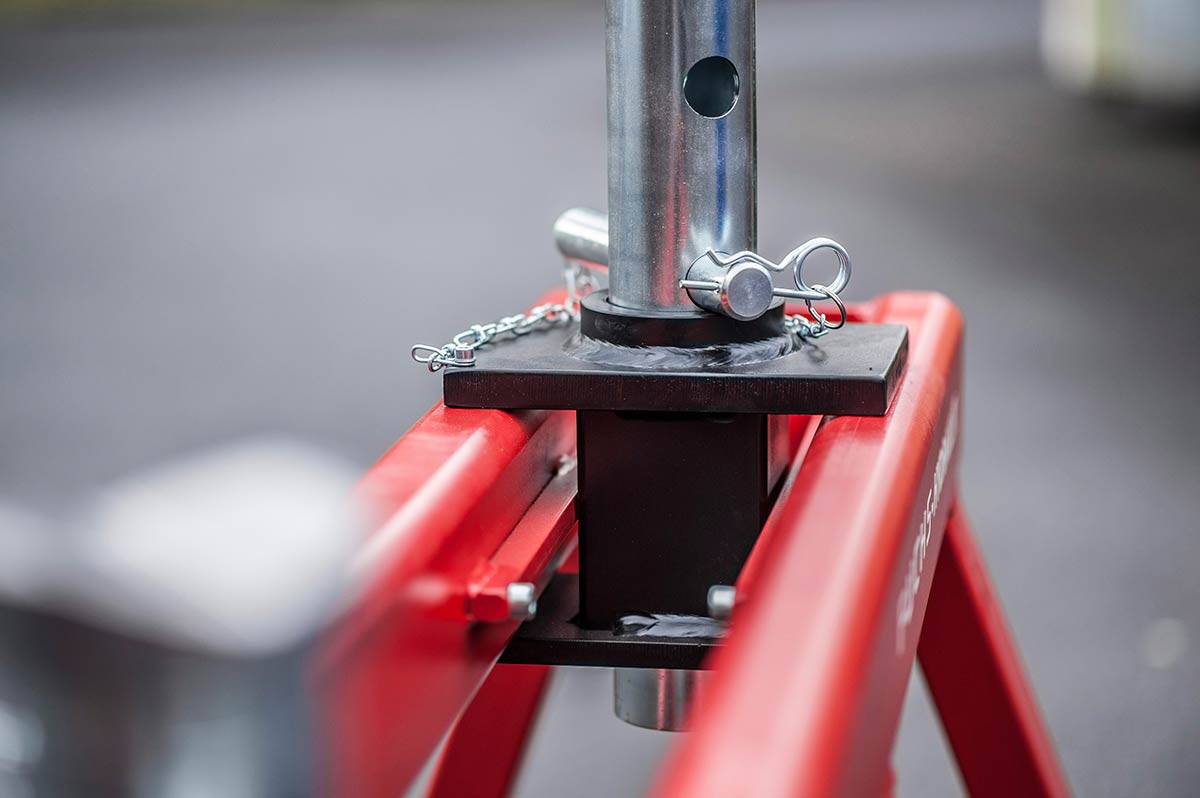

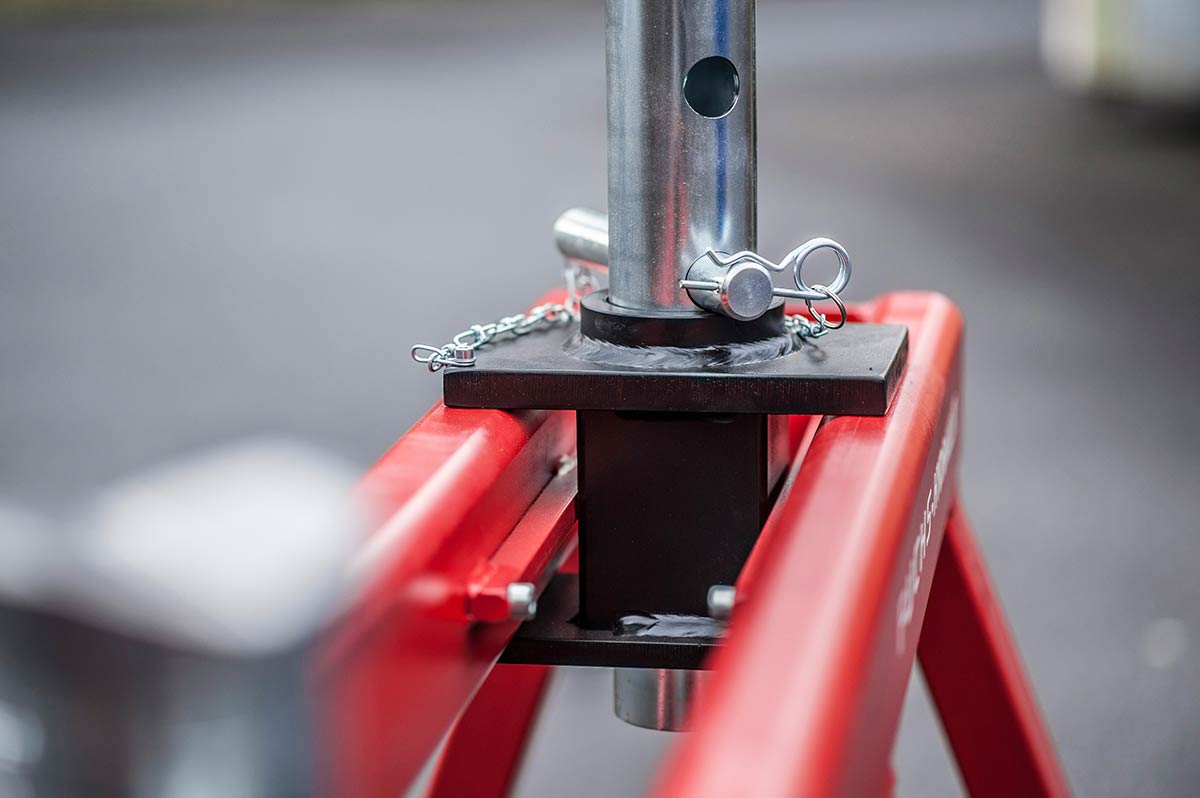

Fuchs Hydraulik strut stands are optionally equipped with continuous adjustment via a trapezoidal thread spindle or with six-point adjustment via locking pins. The robust, tilt-proof steel structure is equipped with four spring-loaded casters for easy positioning.
Features
GS safety tested · CE certified · Made in Germany · 650 mm height adjustment · for five, ten or fourteen tonne loads · sturdy, simple construction · four spring-loaded castors · suitable for axle or spring removal · variants with variable or six-hole adjustment available

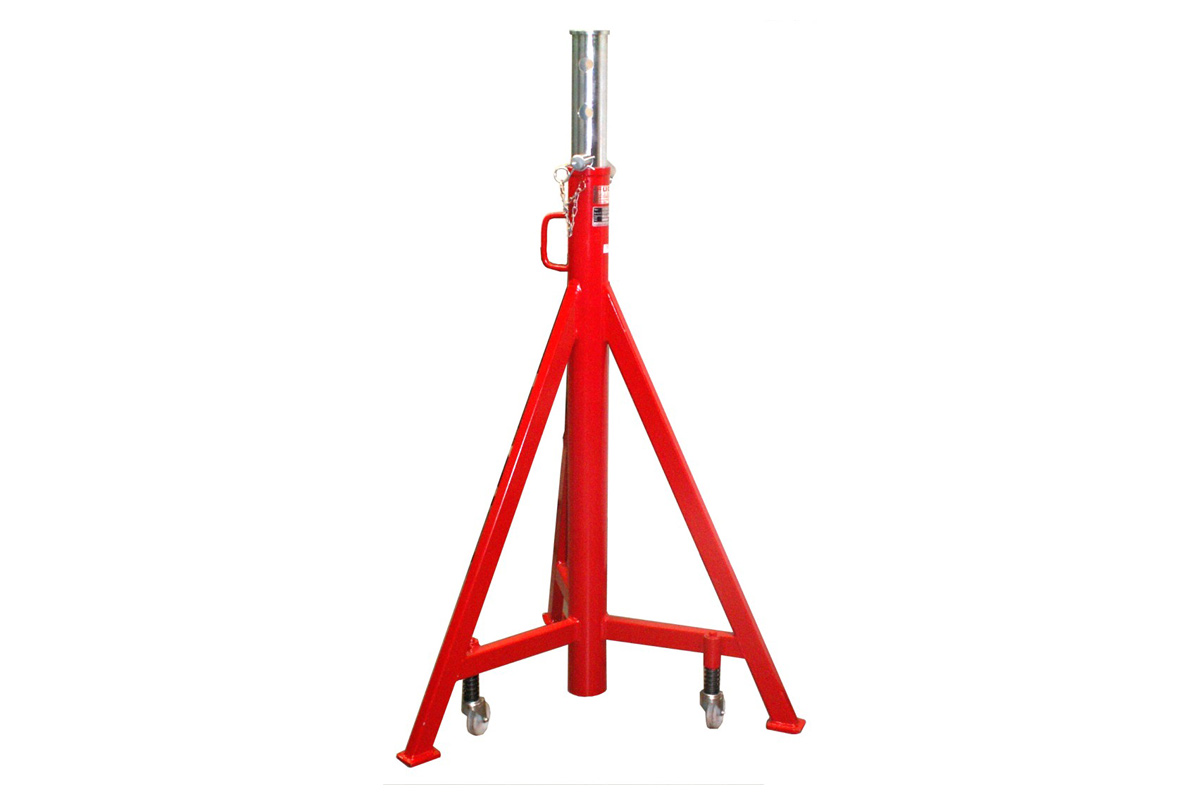

Safety stand

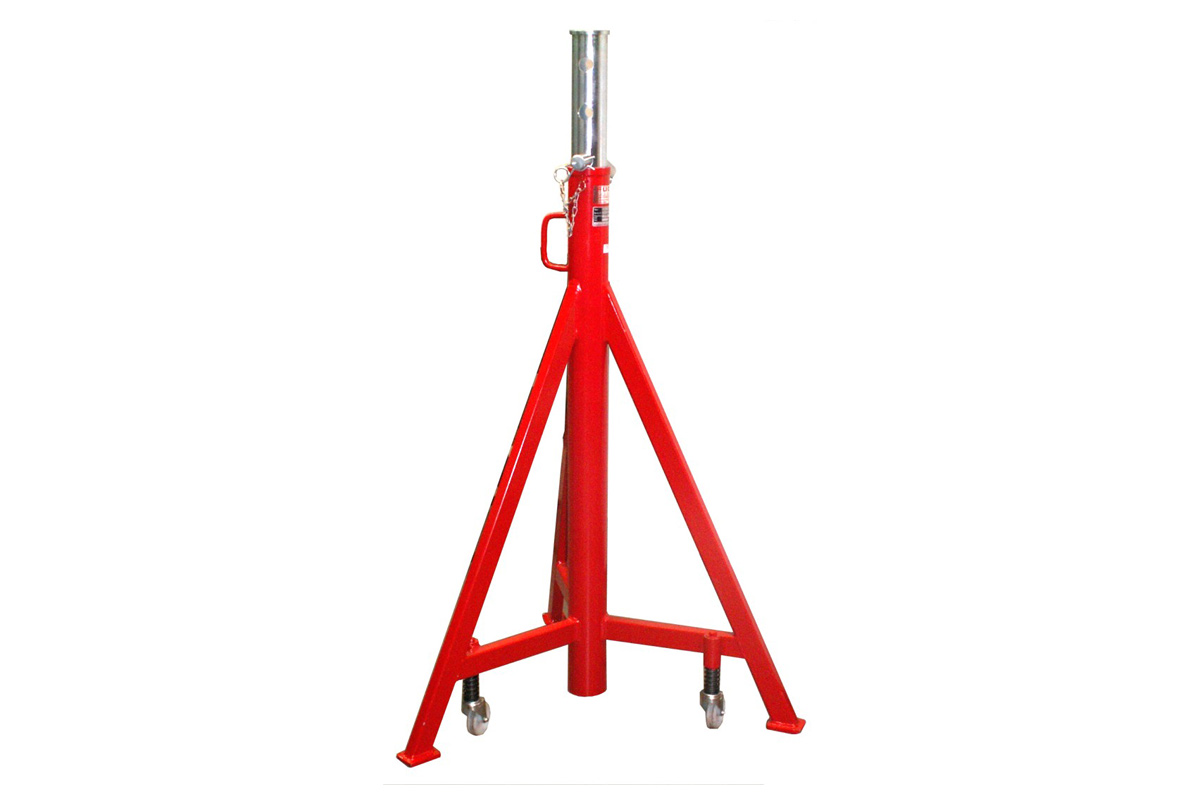

UB-N-R 5 / UB-K-R 5
-
- Unterstellbock mit optionalem Zubehör
| Capacity | 5000kg |
| Adjustment range | 650mm |
| Model | Ratchet adjustment |
| Basic height N | 1240mm |
| Art. No. | 8.715.000 |
| Basic height K | 900mm |
| Art. No. | 8.715.000-K |

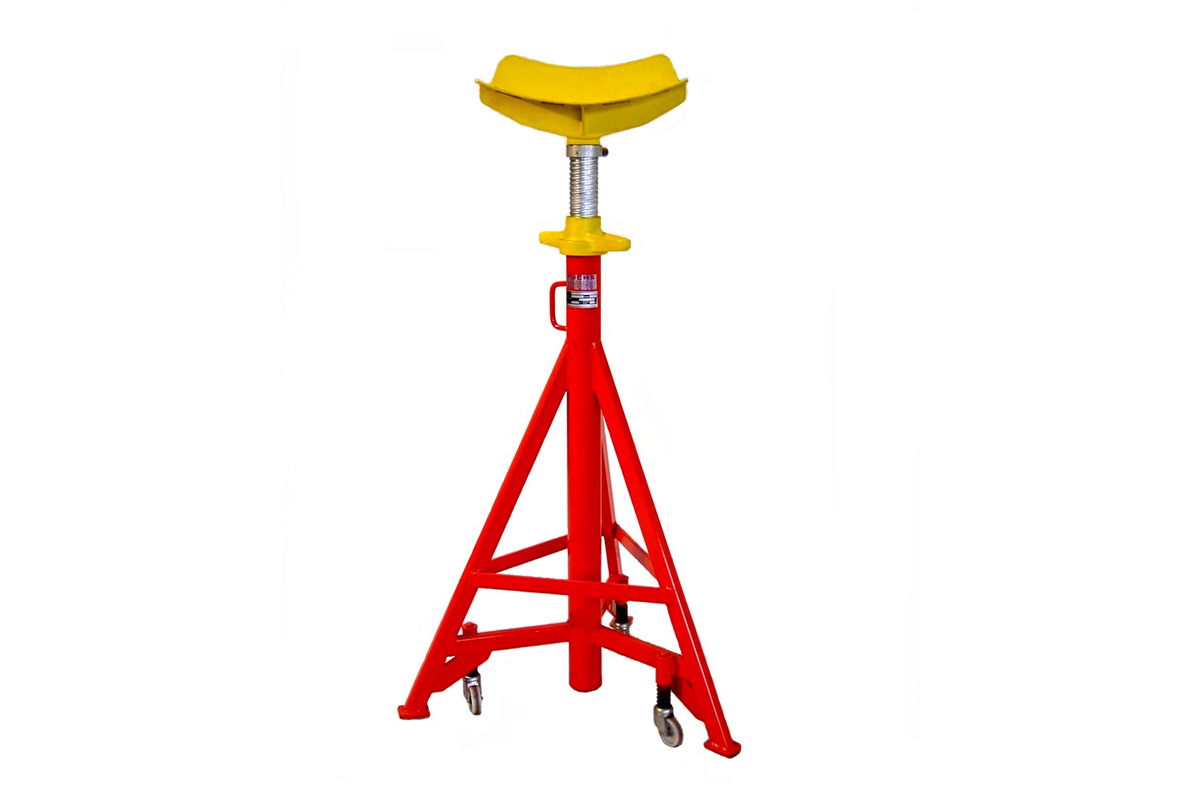

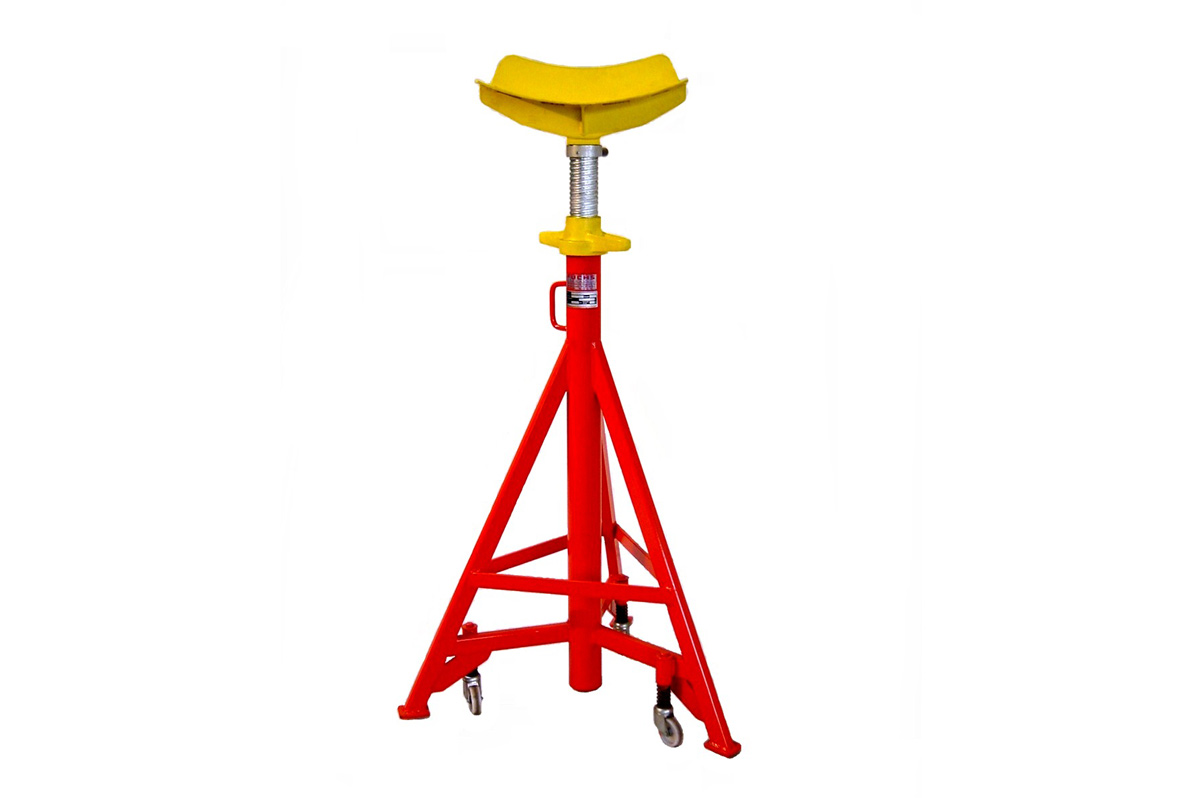

DatenblattUB-N-S 5 / UB-K-S 5
-
- Unterstellbock mit optionalem Zubehör
| Capacity | 5000kg |
| Adjustment range | 650mm |
| Model | Stepless spindle adjustment |
| Basic height N | 1350mm |
| Art. No. | 8.712.000 |
| Basic height K | 990mm |
| Art. No. | 8.712.000-K |
UB-N-S 7 / UB-K-S 7
-
- Unterstellbock mit optionalem Zubehör
| Capacity | 7000kg |
| Adjustment range | 650mm |
| Model | Stepless spindle adjustment |
| Basic height N | 1350mm |
| Art. No. | 8.732.000 |
| Basic height K | 990mm |
| Art. No. | 8.732.000-K |

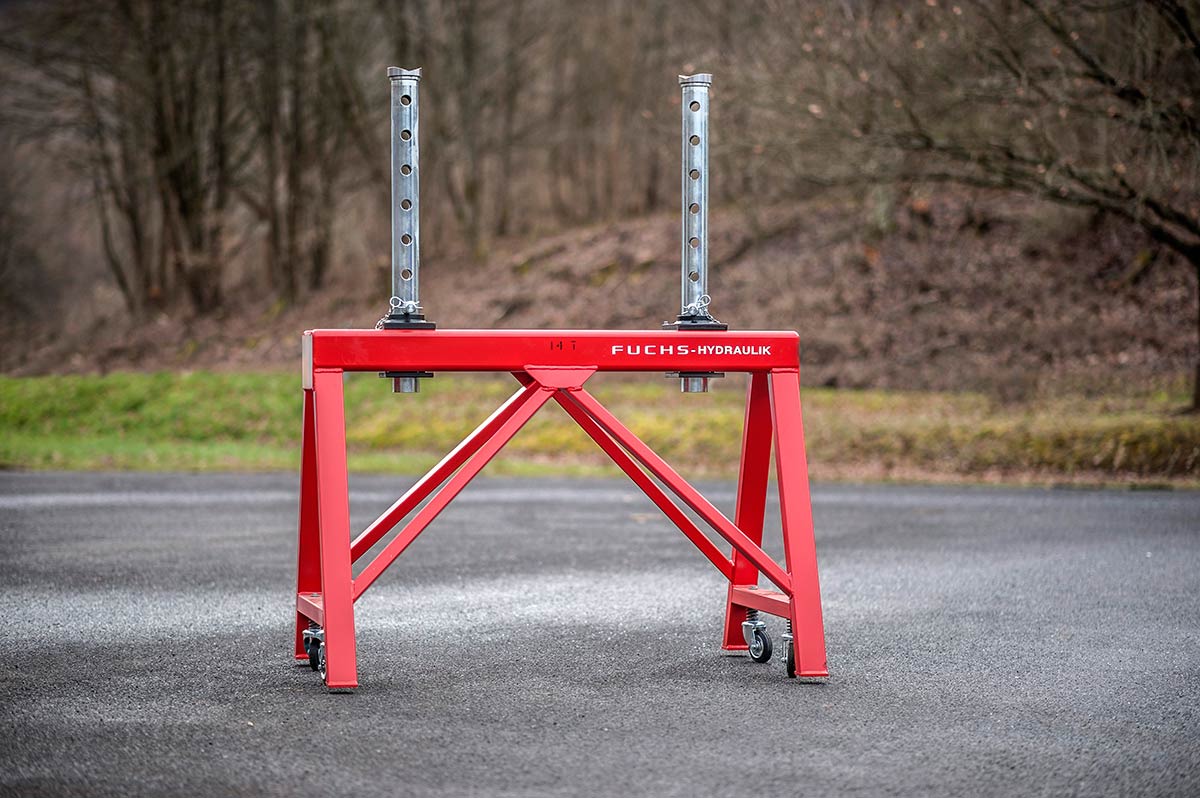

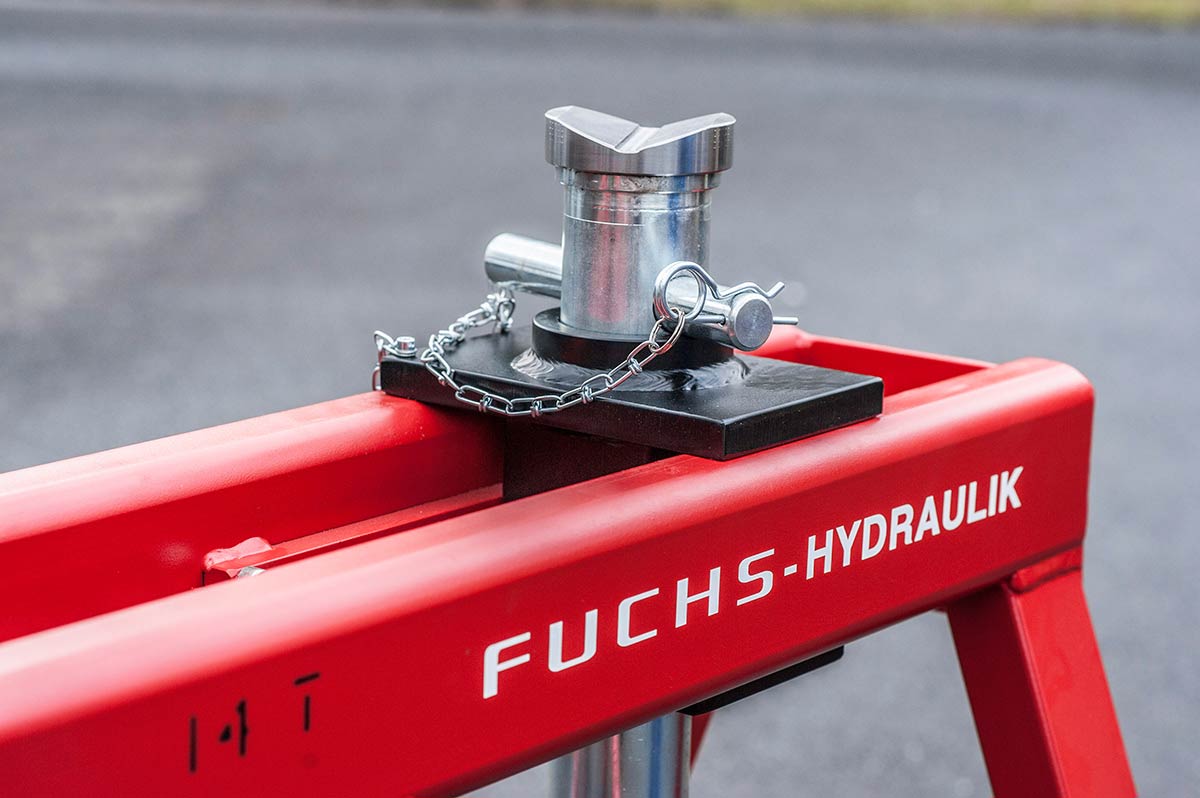

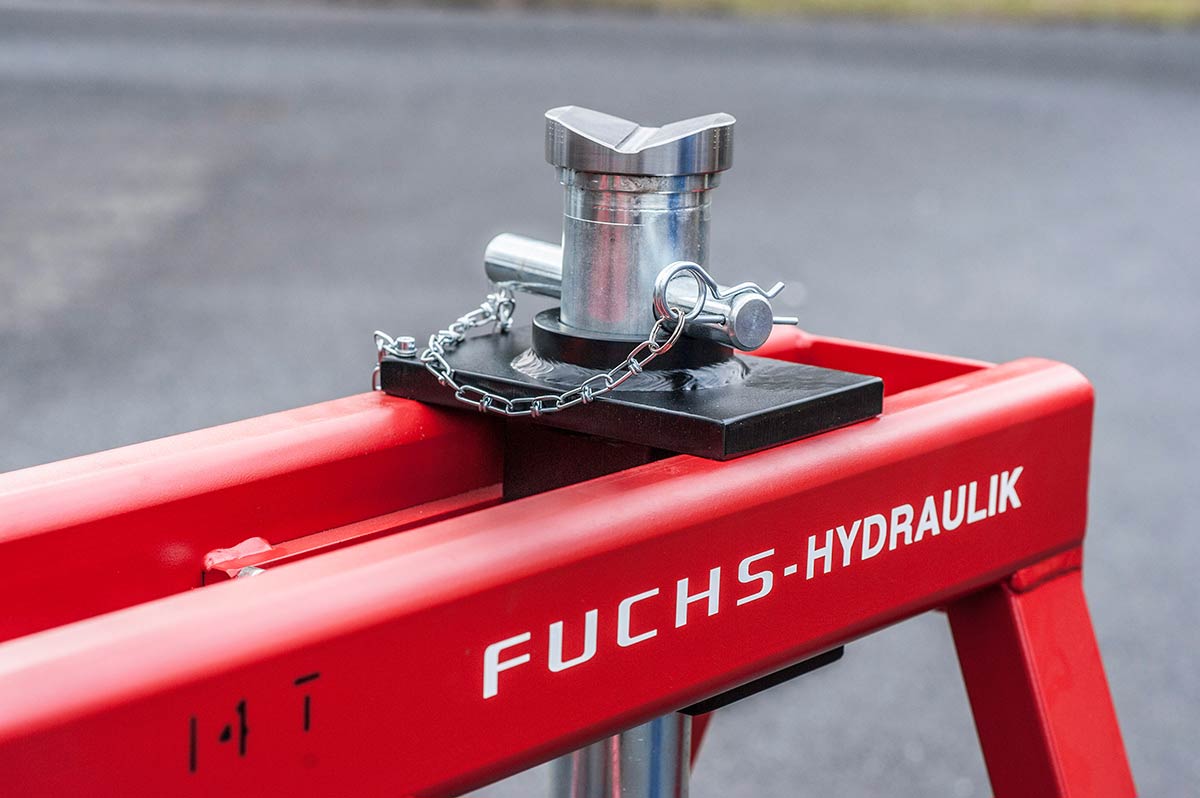

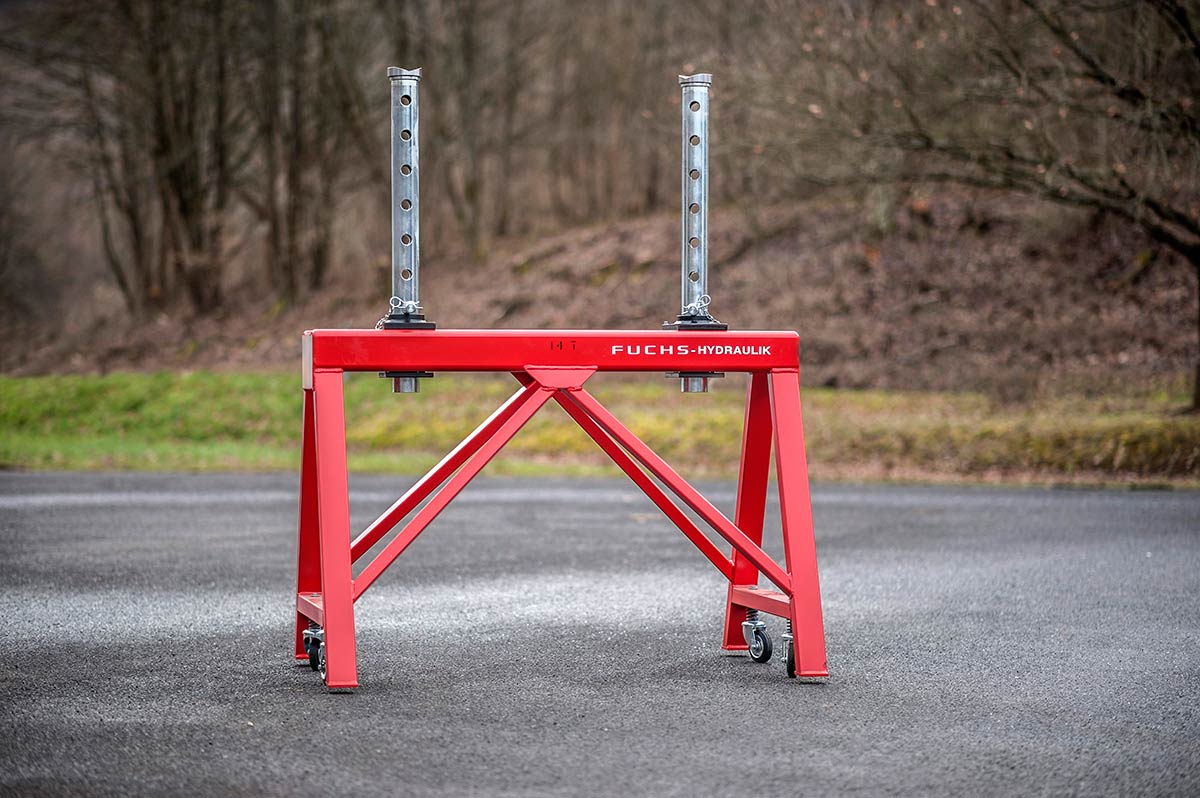

Double safety stand
DUB-N-R 14
-
- Doppel-Unterstellbock mit optionalem Zubehör
-
- Doppel-Unterstellbock mit optionalem Zubehör
-
- Doppel-Unterstellbock mit optionalem Zubehör
-
- Doppel-Unterstellbock mit optionalem Zubehör
| Capacity | 14.000kg | |
| Height adjustment | 650 mm | |
| Width adjustment | 500-1100mm | |
| Model | Ratchet adjustment | |
| Basic height | 1090mm | |
| Overall width | 1430mm | |
| Art. No. | 8.752.000 |
